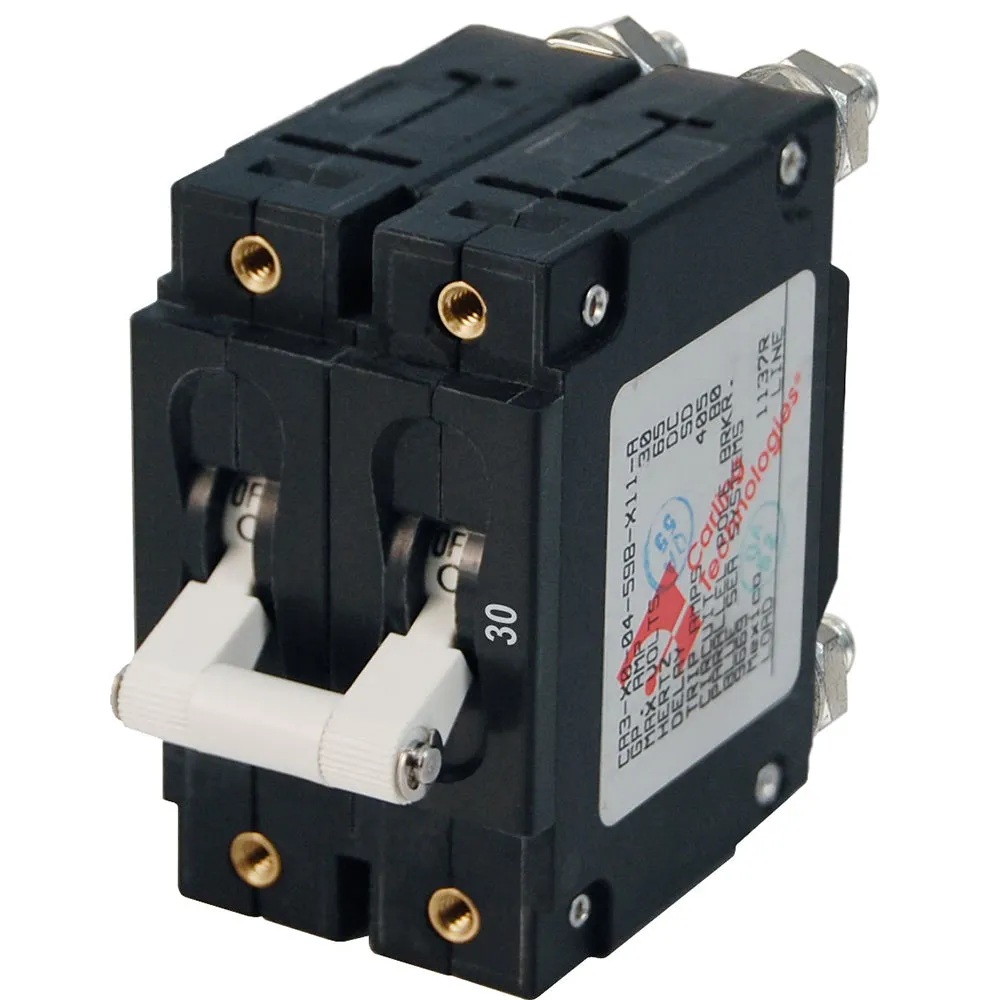

C-Series Toggle

PN: 7365
Poles: 2
Color: White
Amperage: 30A

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection

• Double pole used as 120 volt AC main circuit breaker to switch hot to neutral

• Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral

• Double and triple pole circuit breakers will trip all poles will trip if any one pole trips

• Trip Free design cannot be held ON during fault current condition

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

  Specifications:

  • Amperage: 30a
  • Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs
  • UPC: 632085073657
